Comfort ventilation in a multi-family house: 22 centrally installed ventilation units ensure apartment-wise heat recovery and optimal indoor air

Germany

Comfort ventilation in a multi-family house: 22 centrally installed ventilation units ensure apartment-wise heat recovery and optimal indoor air

Germany

High demands were placed on indoor air quality in the new building with 22 apartments. Centrally located and individually controllable: the controlled living room ventilation ensures comfort and optimal humidity.

  • Apartment Building
  • New Building
  • Heat pump/Residential ventilation
In the past, grain silos characterized the Mühlenviertel of Hattersheim am Main. Today, a five-story residential building with 22 high-quality apartments stands here. The design is reminiscent of the historic grain silos, but the technology and equipment are clearly future-oriented. The construction managers aimed to build as sustainably as possible. “A refined execution with a clinker facade, wood-aluminum windows, and elaborate details such as exposed concrete and glass railings in the stairwell was desired,” reports Armin Theiss of f.m.a. bau GmbH, which began construction in 2020 and completed the last apartment in mid-2022.

Comfort ventilation for ideal indoor climate

In addition to sustainable construction, comfort also played a major role. A geothermal heat pump provides energy for the underfloor heating and the concrete core activation in the ceiling, ensuring pleasant room temperatures all year round. The centerpiece, however, is the well-thought-out ventilation concept: each of the apartments, ranging from 75 to 120 m², has a modern comfort ventilation system with integrated heat and moisture recovery from within the apartment.

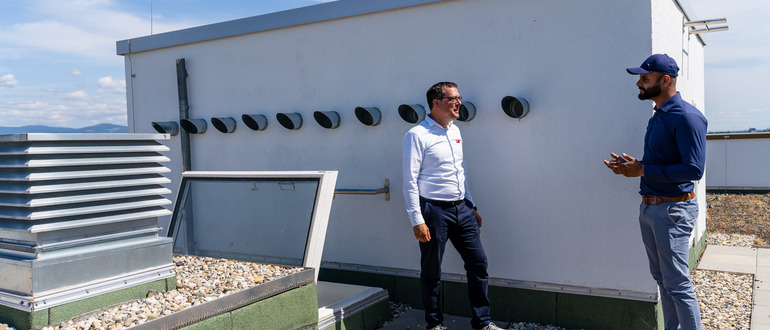

"The units are not located in the individual apartments but are collected under the roof", explains Theiss, listing several advantages of this solution: “For maintenance work, you don’t have to enter the apartments; repairs or filter changes can be easily done in the technical center. The fire dampers, which must always be accessible, are also located there.” Another architectural advantage: unlike systems installed in individual apartments, no ventilation openings are required on the facade.

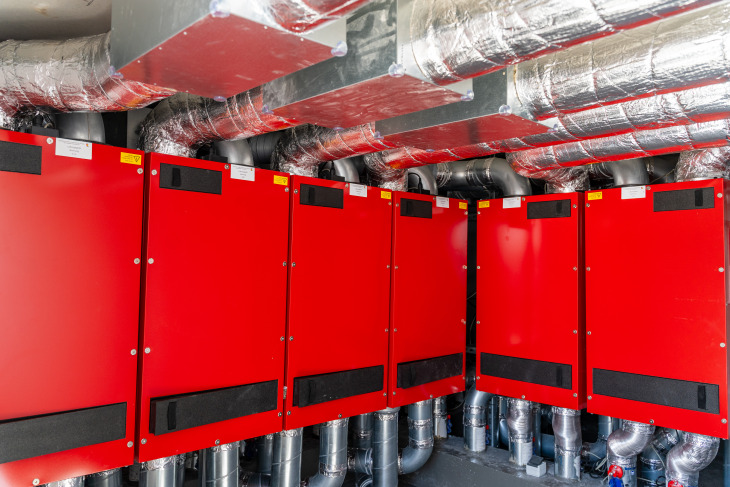

The special thing about the installation: All ventilation devices are located in a technical center under the roof.

Peter Kröplin, Product Manager Living Room Ventilation Hoval Germany

Fresh air with heat and moisture recovery

Nevertheless, each unit has its own HomeVent device with wiring. This allows electricity consumption and heat recovery to be individually assigned. “Like heating, cooling, and hot water, the comfort ventilation can also be adjusted from each apartment as needed,” explains Peter Kröplin, product manager at Hoval. He points out further technical advantages of this project: “Only supply and exhaust air ducts, i.e., ducts with warm air, run through the building. This eliminates the risk of condensation. Insulation of the ducts is not necessary, and there are no energy losses.”

Optimal operation through long-term cooperation

As is common in passive house construction, the ducts – including the main, supply, and exhaust air ducts to the apartments – were laid through the concrete walls. This ensures not only fire protection when passing through foreign floors but also virtually silent operation. The residents hardly notice the ventilation – they only notice the good air.

"Since the apartments were occupied, there has only been positive feedback", confirms Armin Theiss from the executing construction company. “We have been working with Hoval for a long time and are convinced of the durable and high-quality products. The HomeVent ventilation system particularly impressed with the rotary heat exchanger and efficient moisture recovery,” he explains his decision for Hoval systems.
